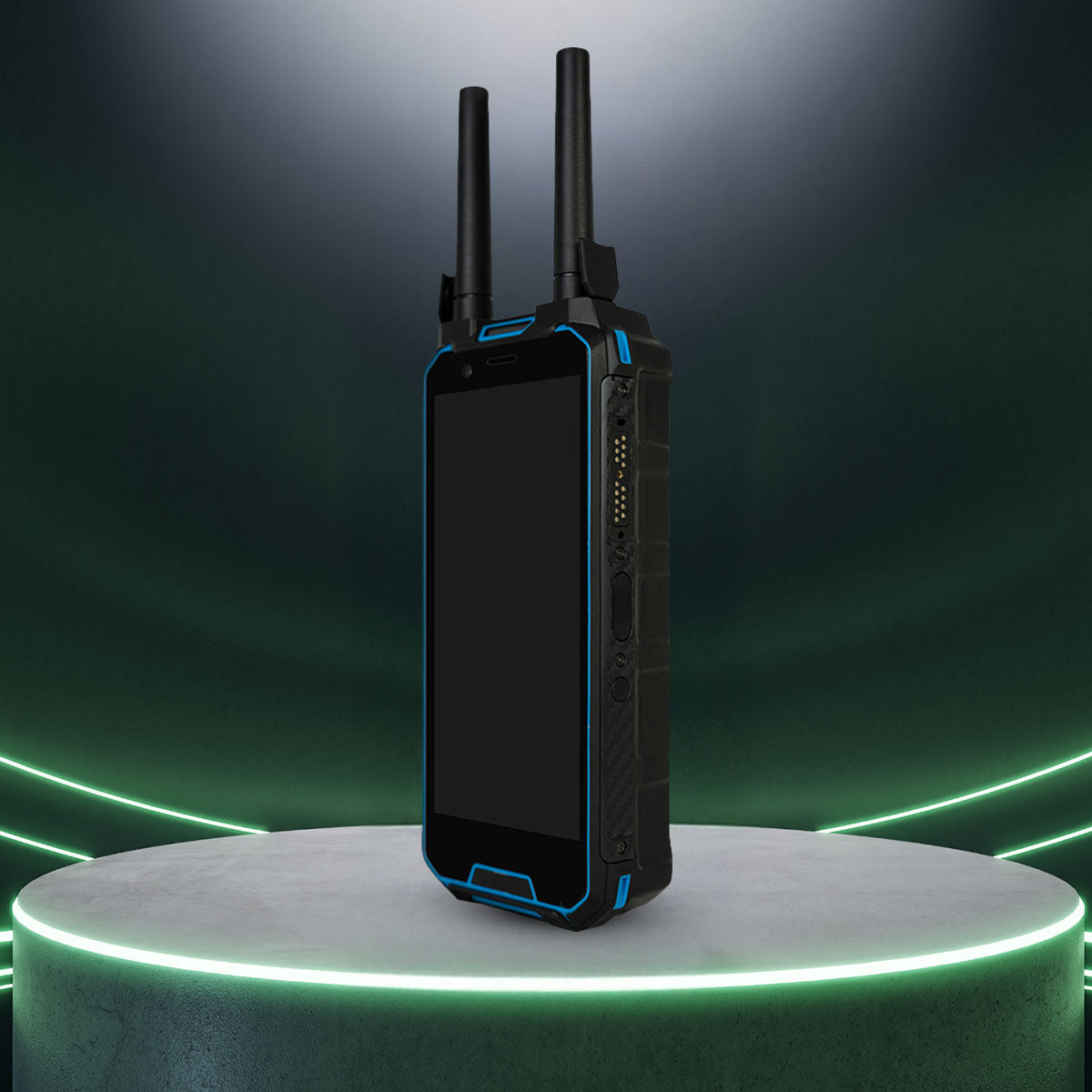

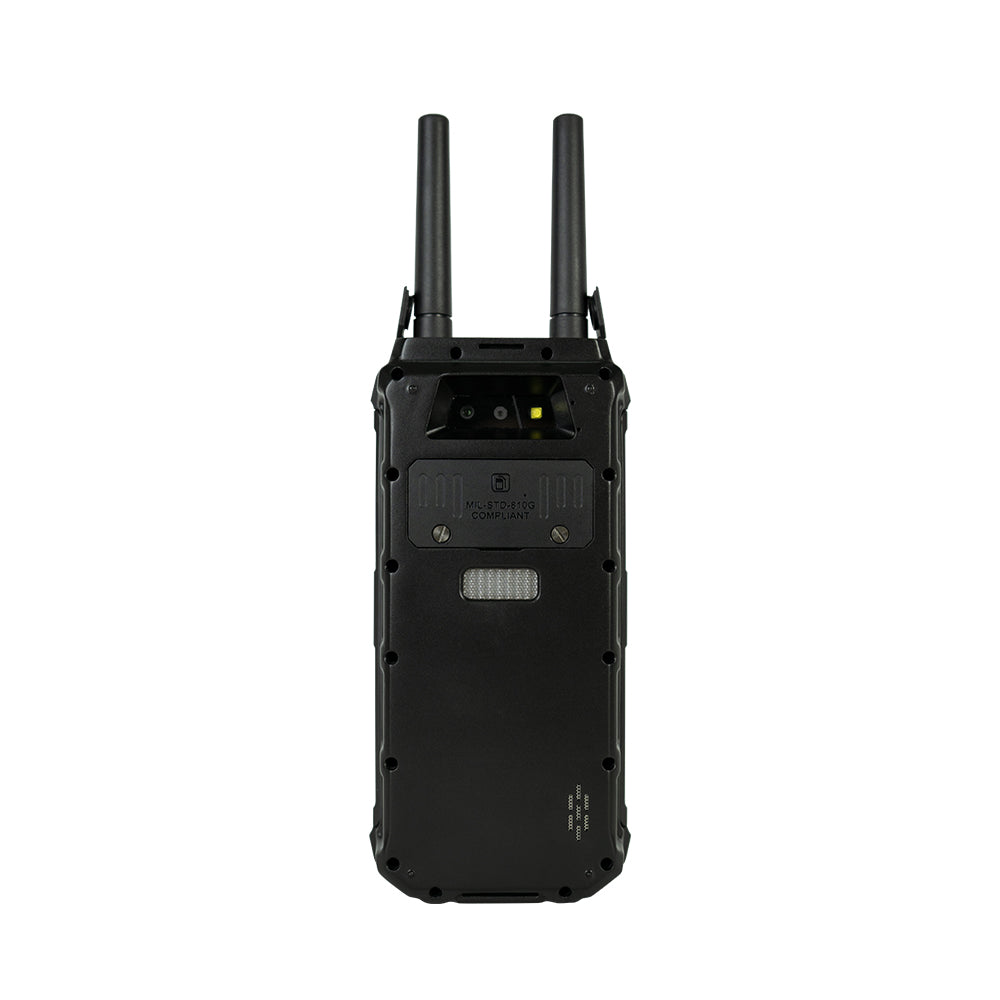

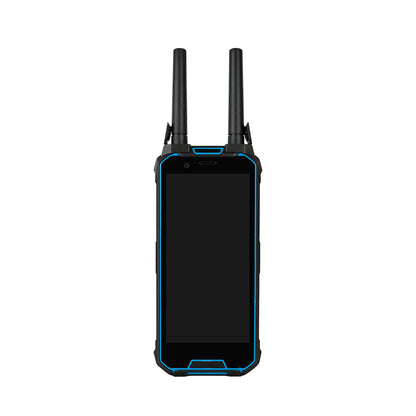

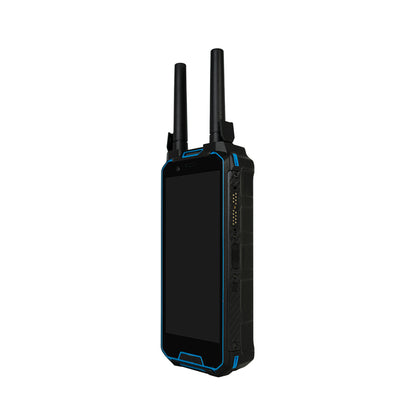

Hand-held detection device XY2558

Hand-held detection device XY2558

$10,800.00 USD
$10,800.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

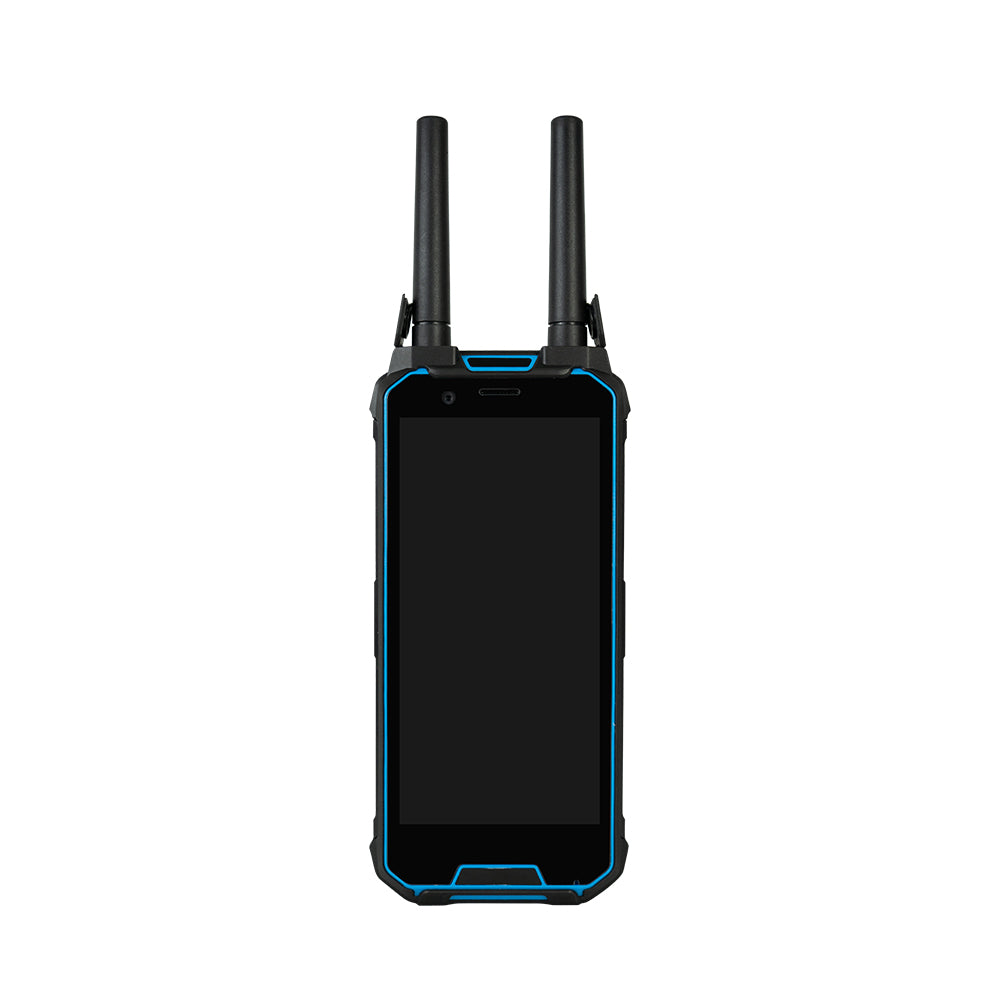

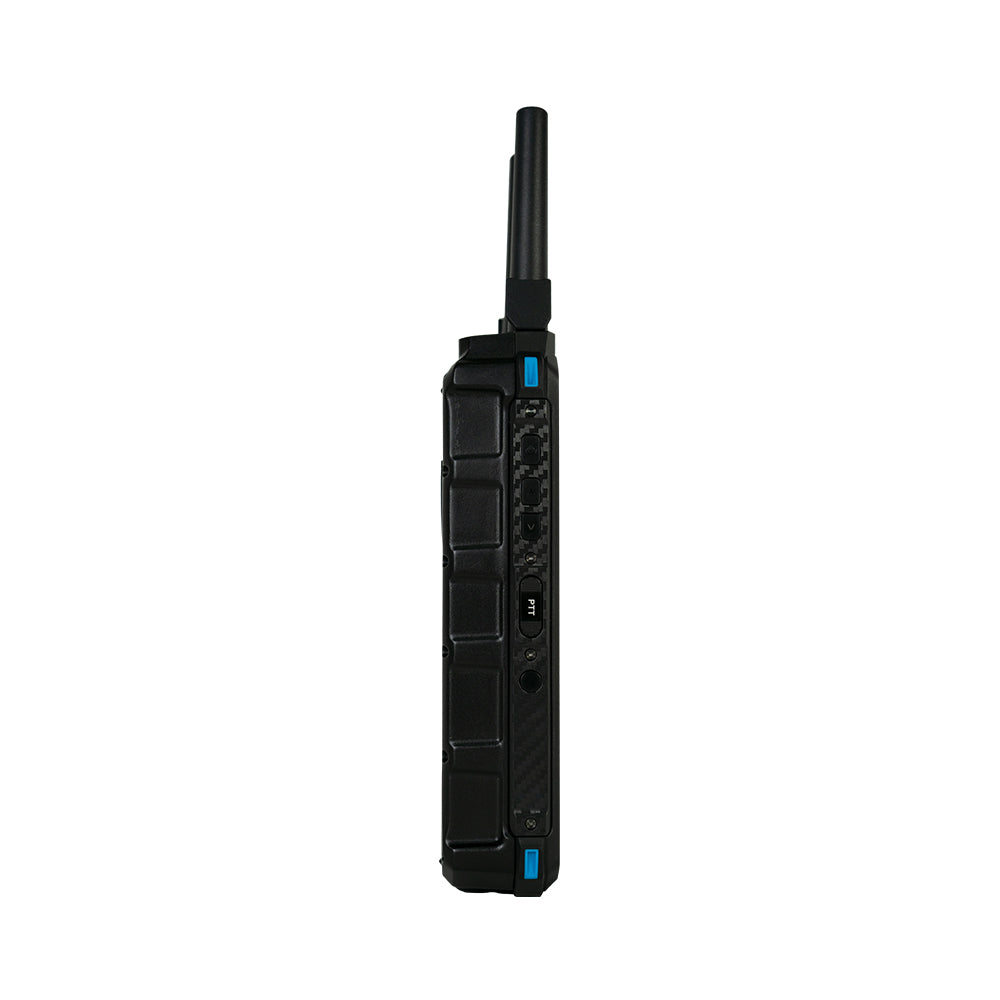

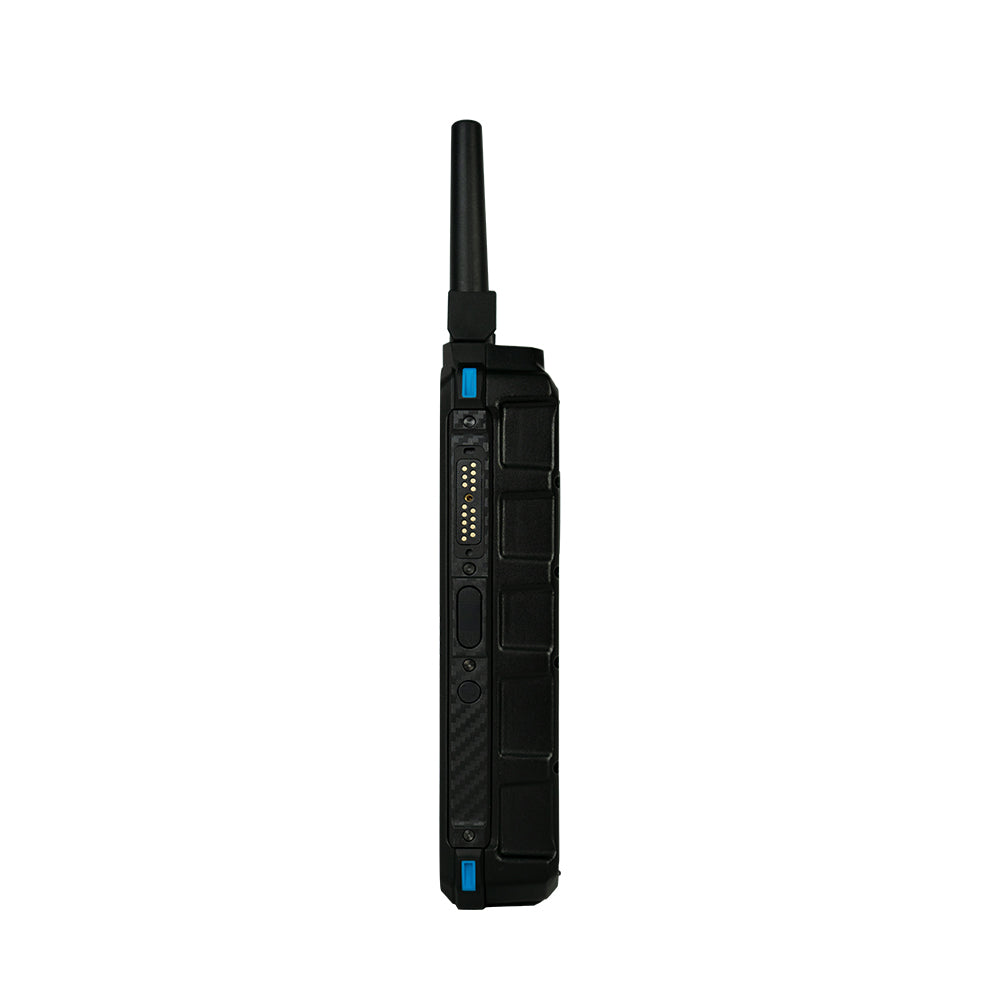

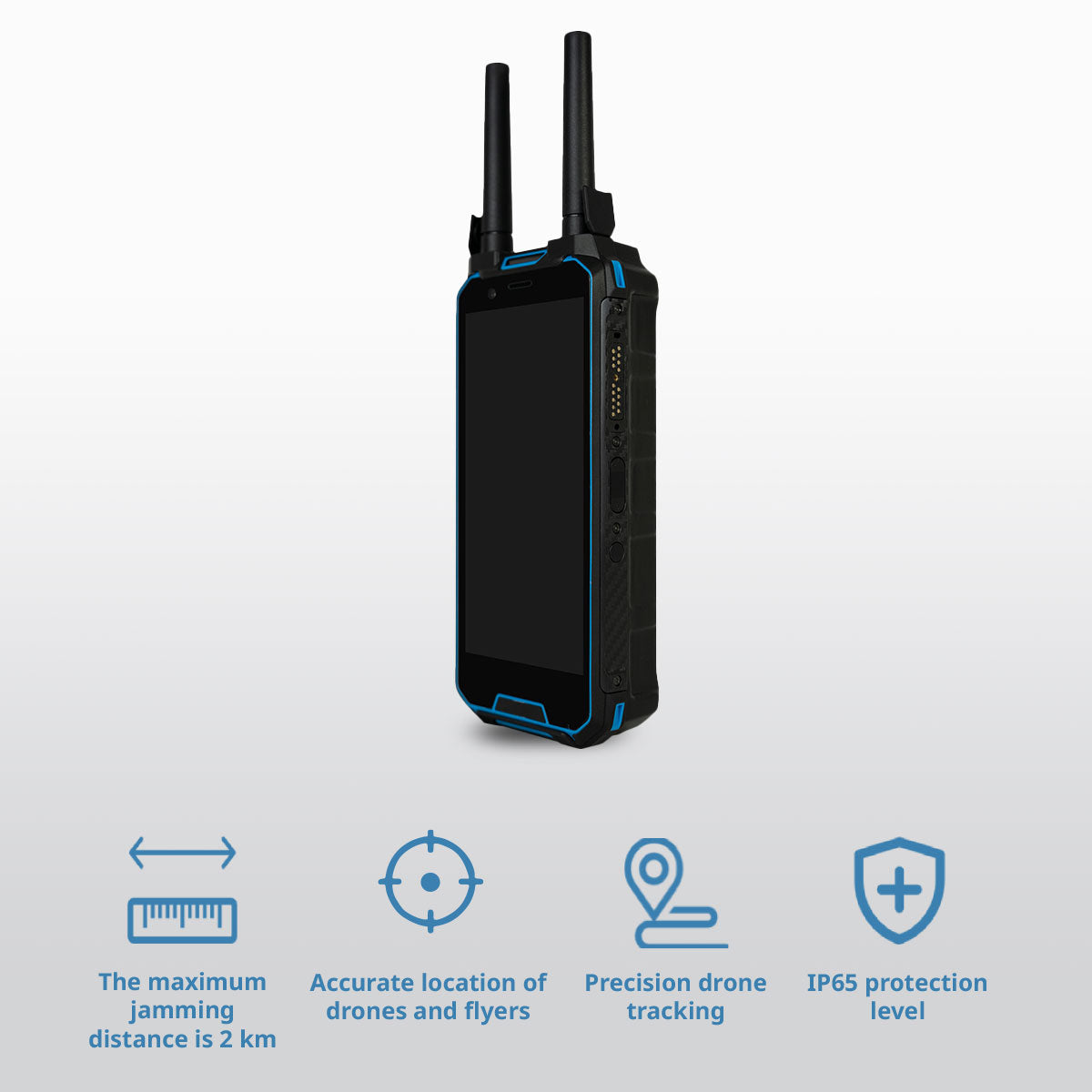

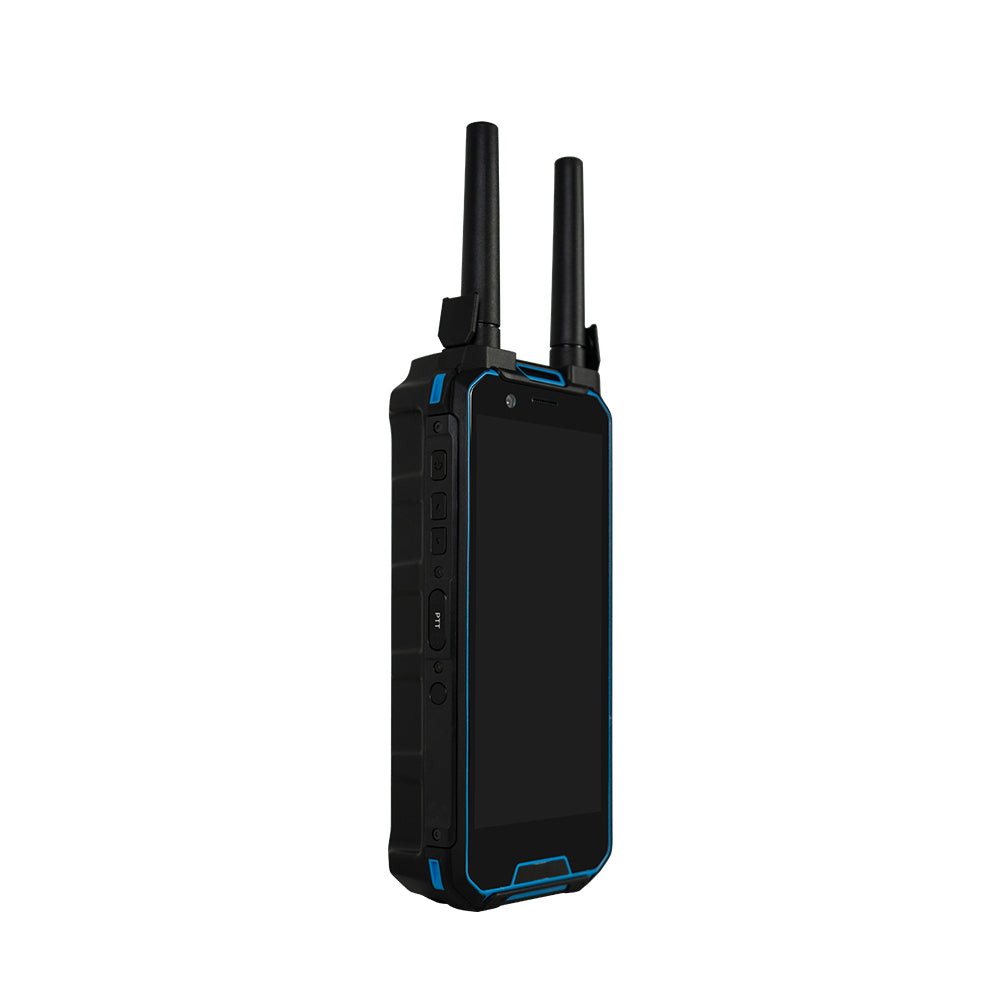

The XY2558 Handheld Drone Detection and Positioning Device is a portable, all-in-one system designed for passive detection, real-time tracking, and precise localization of drones and their operators (remote controllers). Utilizing advanced spectrum analysis and signal fingerprinting, it identifies drone models (primarily DJI OcuSync), serial numbers, flight paths, and pilot locations without emitting any signals. With a compact design (185×80×33mm, 580g) and 4.5-hour battery life, it’s ideal for military, law enforcement, and critical infrastructure security.

View full details

Specifications

Pair text with an image to focus on your chosen product, collection, or blog post. Add details on availability, style, or even provide a review.

  • Detection Frequencies:
    - 2400–2485MHz
    - 5725–5850MHz
  • Detection Range: 1,000–2,000m (passive)
  • Dimensions (Host): 185 × 80 × 33 mm
  • Weight: 580g (with antennas)
  • Battery: 8,000mAh lithium (4.5h runtime, 2.5h charge)
  • Screen: 6.0-inch, 1080×2160 pixels
  • Connectivity: Wi-Fi, 4G SIM, Bluetooth, Type-C
  • Operating Temperature: –25°C to +40°C

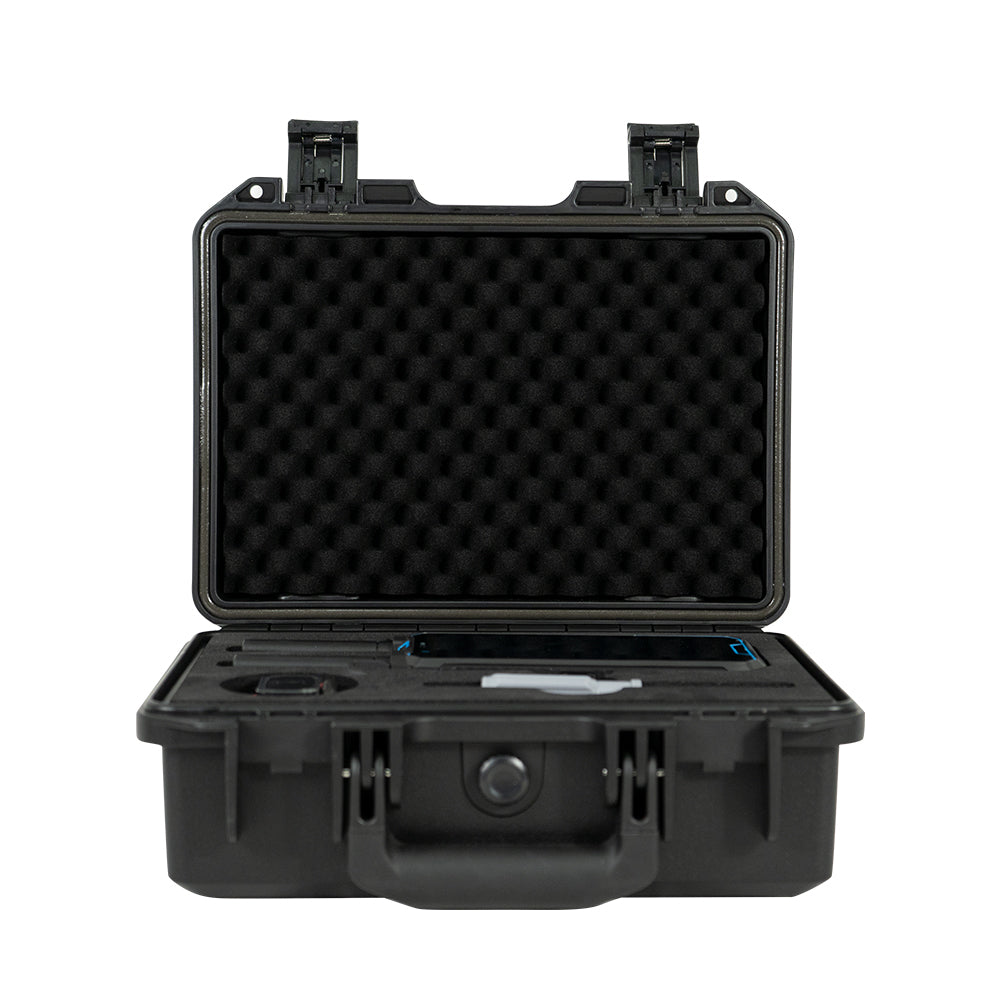

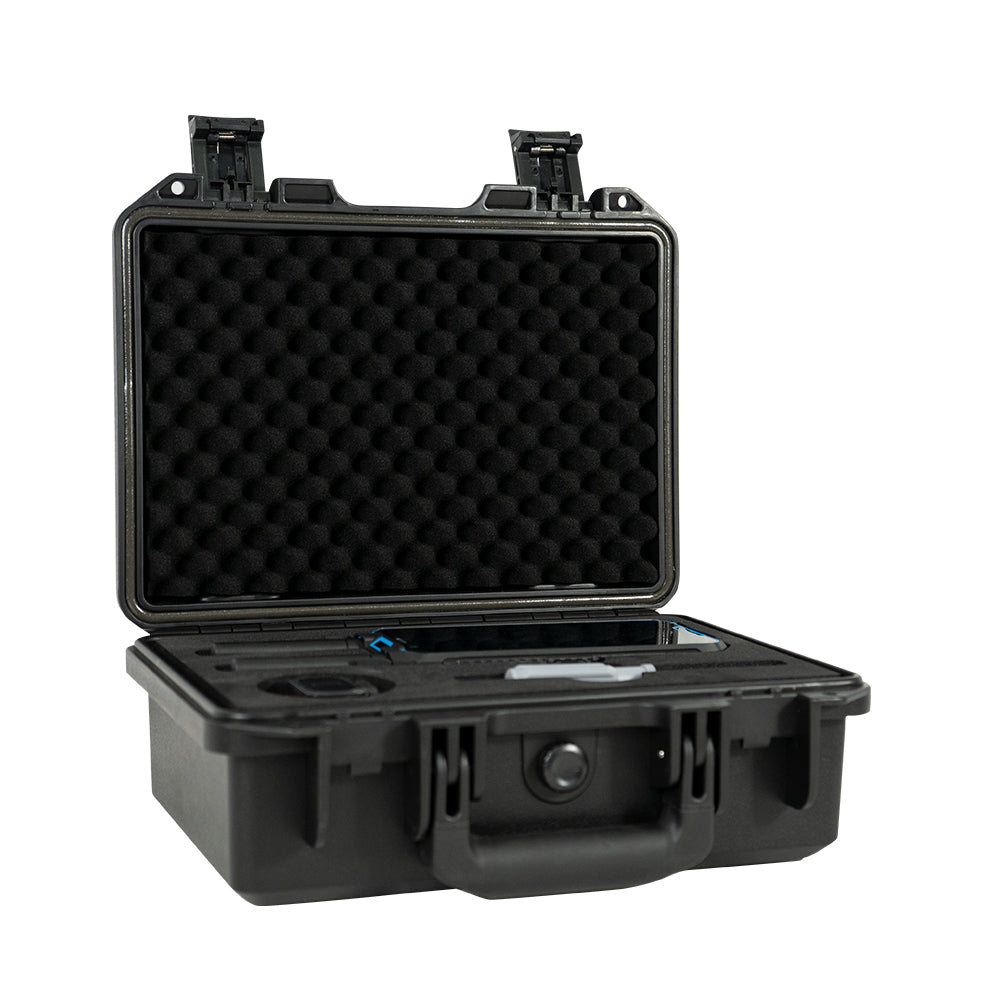

  • Included Accessories: Host, 2 antennas, Type-C cable, power adapter, SIM card

Key Features

  • Passive Detection

    Zero RF emissions; detects drones via signal analysis (2400-2485MHz, 5725-5850MHz).

  • Multi-Target Tracking

    Simultaneously tracks ≥10 drones, displaying real-time trajectories, speeds, altitudes, and pilot locations on an interactive GIS map.

  • Advanced Identification

    Distinguishes between identical drone models/SNs and supports DJI, FPV, and RID-compliant drones.

  • Integrated Navigation

    Directly routes to detected drones/pilots via third-party navigation apps.

  • Smart Alerts & Whitelisting

    Sound/vibration/light alarms for intrusions; customizable whitelists to ignore authorized drones.

  • Dual Connectivity

    Supports Wi-Fi, SIM card (includes 10GB/month for 12 months), and Bluetooth for data export.

Shipment Method

FOB Shenzen

Payment Method

Payment Terms:

50% deposit, full payment required before shipment.

Delivery Time:

10-20 days
