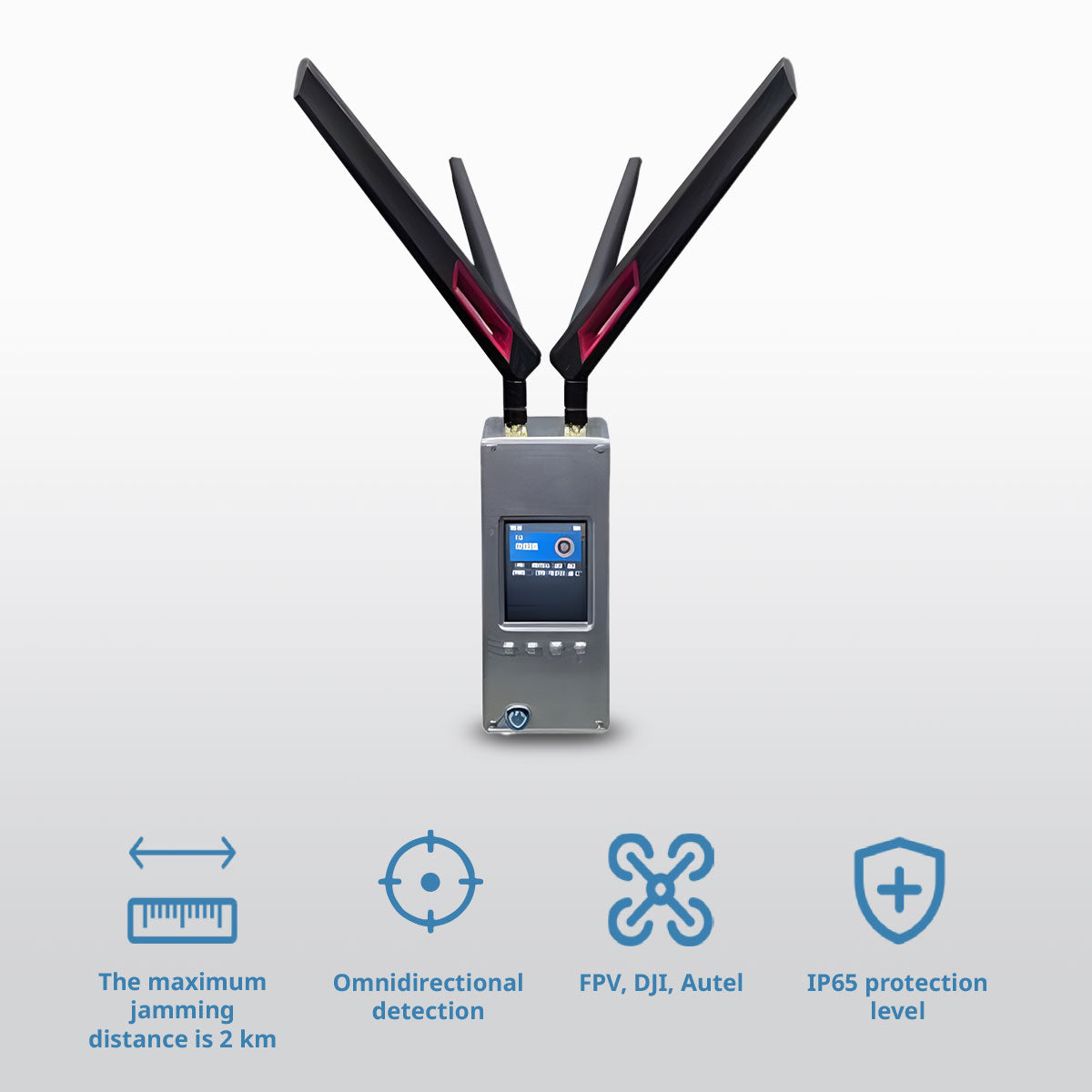

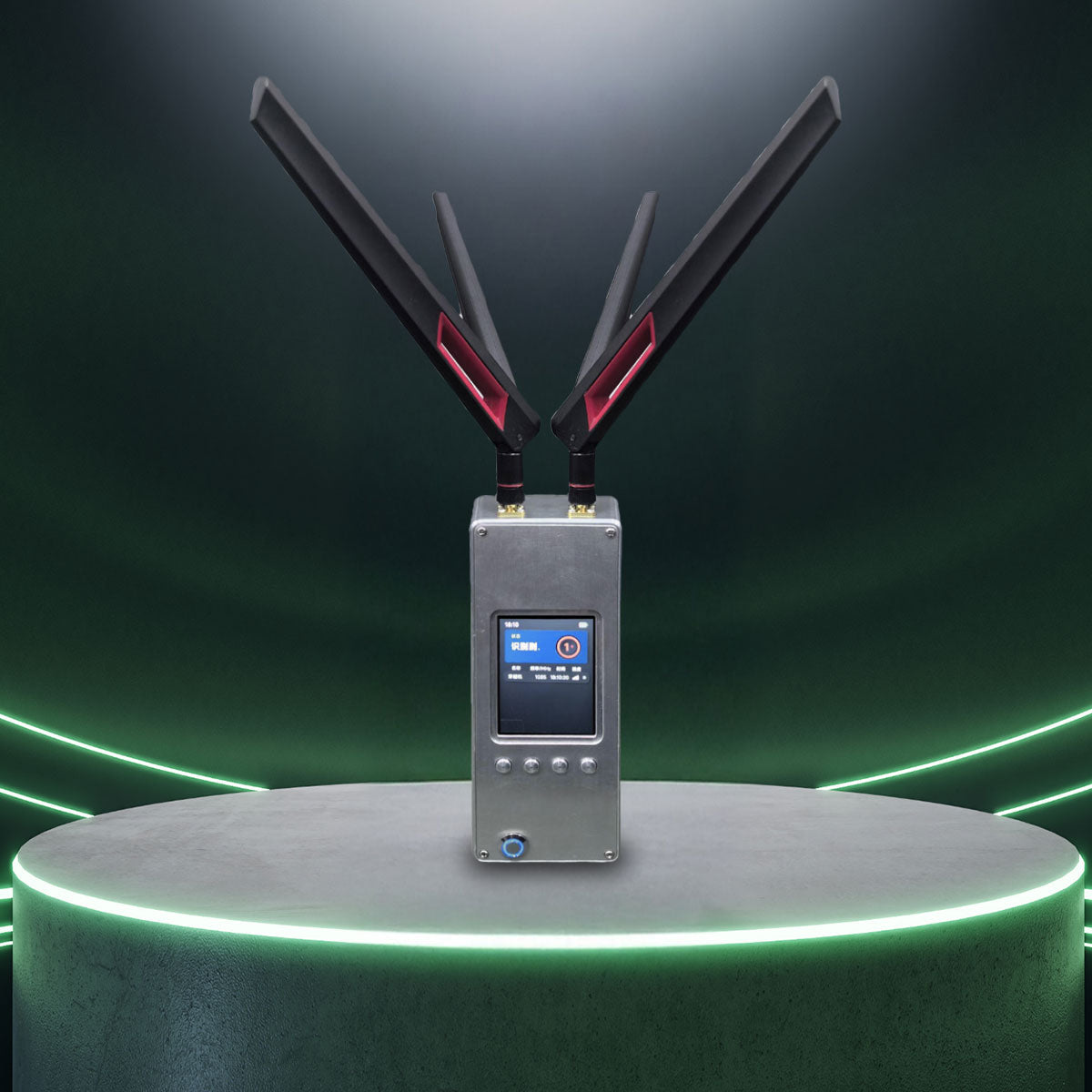

Hand-held detection device XY2349

Hand-held detection device XY2349

$9,900.00 USD
$9,900.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

The Hand-held Detection Device XY2349 is a lightweight, high-sensitivity portable system designed for rapid identification and tracking of unauthorized drones. Capable of detecting DJI, Autel, FPV, and DIY video transmission UAVs across 1.1–1.4GHz, 2.4GHz, and 5.8GHz bands, it offers omnidirectional detection up to 1,500 meters. Weighing only 215g (without antenna) and featuring IP65-rated ruggedization, it is ideal for military, law enforcement, and event security teams operating in harsh environments.

View full details

Specifications

Pair text with an image to focus on your chosen product, collection, or blog post. Add details on availability, style, or even provide a review.

  • Detection Bands: 1.1–1.4GHz, 2.4GHz, 5.8GHz
  • Detection Range: Up to 1,500m
  • Detection Direction: 360° omnidirectional
  • Antenna Gain: 3dBi
  • Dimensions: 120 × 60 × 24 mm (without antenna)
  • Weight: 215g (without antenna)
  • Protection Rating: IP65
  • Response Time: ≤5 seconds
  • Power Consumption: 5.5W
  • Voltage Range: 9–36V DC
  • Operating Temp.: -20°C to +60°C
  • Customization: Supported

Key Features

  • Multi-Band Detection

    Covers 1.1–1.4GHz (L-band telemetry), 2.4GHz (Wi-Fi/control), and 5.8GHz (FPV/video).

  • Ultra-Compact Design

    120×60×24mm body (smaller than a smartphone) for one-handed operation.

  • Rapid Response

    ≤5-second detection time for real-time threat alerts.

  • Ruggedized Build

    IP65 protection against dust/water ingress.

  • Low Power Consumption

    5.5W power draw with 9–36V input (vehicle/compatible battery support).

  • Wide Temperature Tolerance

    Operates in-20°C to 60°C extremes.

Shipment Method

FOB Shenzen

Payment Method

Payment Terms:

50% deposit, full payment required before shipment.

Delivery Time:

10-20 days

Related products

Frequently Asked Questions

What is Aidrone Rapid Response?

Aidrone Rapid Response is a mobile, multi-layered drone detection and mitigation unit designed for quick deployment. It provides comprehensive airspace security in various locations by utilizing RF sensors, radar, and cameras.

How quickly can Aidrone Rapid Response be deployed?

The system can be set up and operational within 20 minutes, making it ideal for dynamic environments requiring rapid response.

What types of sensors are included in Aidrone Rapid Response?

The system integrates RF detection sensors, PTZ cameras, and radar, allowing for a robust, multi-layered approach to detecting, tracking, and identifying drones..

Can Aidrone Rapid Response be used in different locations?

Yes, Aidrone Rapid Response is mobile and can be easily transported and deployed at various locations, including large public events and critical infrastructure.

What are the detection ranges of Aidrone Rapid Response?

The RF sensors have a range of up to 5 km, PTZ cameras up to 1 km, and radar up to 1 km, providing comprehensive coverage of the airspace.

How does Aidrone Rapid Response handle multiple drone threats?

The system’s advanced radar and sensor fusion capabilities enable it to detect and track multiple drones simultaneously, ensuring effective airspace monitoring.

Who benefits from using Aidrone Rapid Response?

Aidrone Rapid Response empowers airports, government facilities, hotels, major events, private properties, critical infrastructure, border surveillance operations, restricted zones, and sports venues to enhance their protection against unauthorized drone activity.
